Capillex CX
Capillex® CX – Controlled Profile Capillary Film
Product Overview
Capillex® CX is a controlled profile direct capillary stencil film designed for industrial, graphic and electronic screen printing applications where controlled ink deposition and reduced edge build-up are critical.
With a precisely controlled surface profile (Rz 4–5 µm), Capillex® CX provides improved ink transfer consistency on coarser mesh counts while reducing thick print edges and excessive ink accumulation.
Key Features
Controlled stencil surface profile (Rz 4–5 µm)
Optimised for medium to coarse mesh counts
Improved control over ink deposition
Reduces thick print edges
Consistent and predictable ink laydown
High image resolution and sharp edge definition
Wide processing latitude
Consistent stencil build-up with single application
Ink Compatibility
UV-curable inks
Solvent-based inks
Plastisol inks
❌ Not recommended for water-based inks
Typical Applications
Industrial screen printing
Graphic applications requiring controlled ink laydown
Electronics and membrane applications
Medium to coarse mesh screen printing
Applications where edge definition and ink control are critical
Technical Information
Film type: Controlled profile direct capillary stencil film
Surface profile: 4–5 µm (Rz)
Application method: Water application (spray or roll-down method)
Exposure: Same as direct emulsion systems
Reclaim: Standard stencil removers for diazo / SBQ systems
Available Formats
Custom cut sheets (minimum order applies)

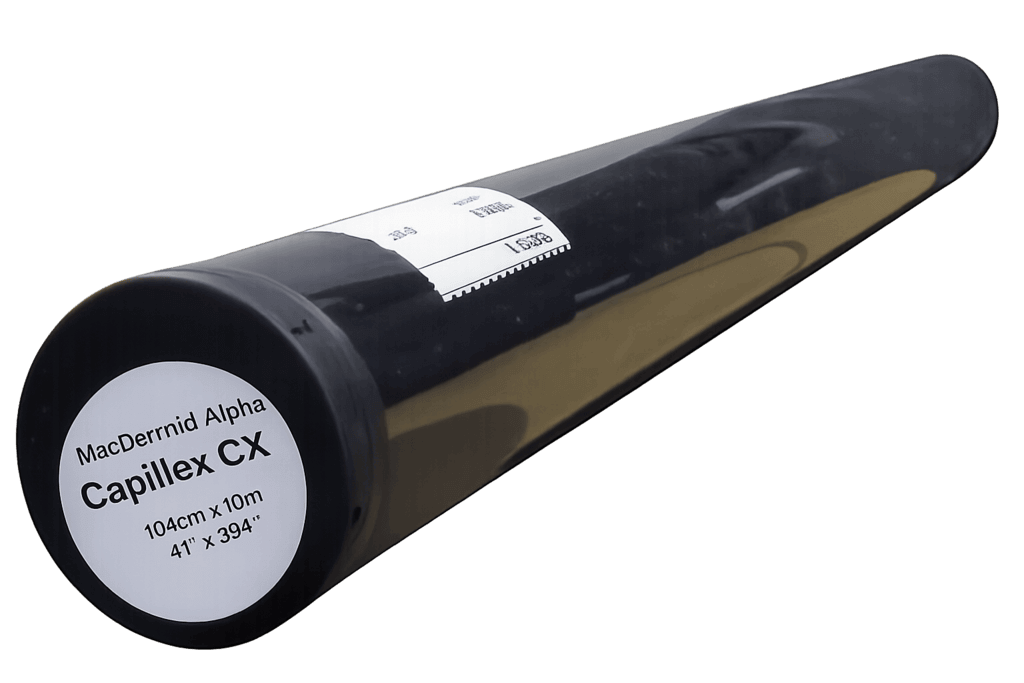

Rolls (various widths available)
Specifications
| MacDermid Packaging | 35cm x 50 cm - 100 sheets or 52cm x 75cm - 100 sheets or 63cm x 74cm - 100 sheets or 104cm x 10m - 1 roll |
